Guitar Reverb Pedal

(C) 1998, G. Forrest Cook

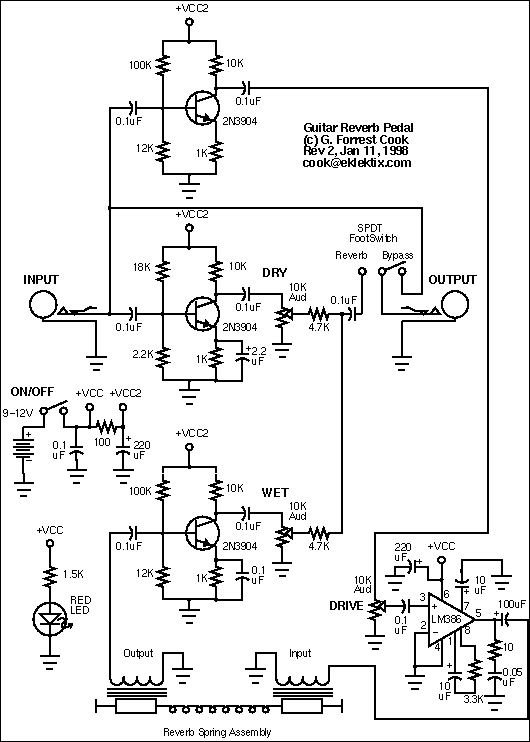

This is a circuit for a guitar spring reverb pedal, it has dry, wet, and drive controls for a wide variety of sounds. With a decent reverb spring (tank) in overdrive, this circuit will produce an incredibly thick and grungy sound, build one and be the envy of all of your guitar playing friends. This circuit is here for historical purposes, it is recommended that you use the much improved Rev 2 Reverb Circuit.

• Rev 1 Guitar Reverb Pedal in PostScript format (105kb)
• Rev 1 Guitar Reverb Pedal in GIF format (13kb)
• Description of the reverb circuit
• CAD images for a reverb PC board (118K) Contributed by by Scott Harper.

Suppliers of reverb tanks
